Understanding the Basics of Home and Office Data Wiring
In today’s connected world, data wiring forms the backbone of both residential and commercial environments. Reliable, efficient wiring is no longer optional—it is essential for ensuring seamless internet connectivity, smooth operation of office networks, and the optimal performance of smart home systems. With the growing reliance on technology, understanding the basics of data wiring becomes crucial for anyone looking to set up, upgrade, or maintain a home or office network. Poorly installed wiring can lead to intermittent connectivity, slower network speeds, and increased maintenance costs, which can disrupt both productivity and daily life.
Proper data wiring involves more than simply connecting cables; it requires knowledge of cable types, network topology, and signal management. Whether installing a simple home network or designing a complex office setup, a structured and strategic approach ensures performance, reliability, and future scalability. This blog will provide a comprehensive guide to the fundamentals of home and office data wiring, offering actionable insights, practical examples, and best practices. By understanding the key principles behind effective wiring, anyone can make informed decisions that enhance connectivity, improve safety, and optimize overall network performance.
1. Types of Data Cables and Their Uses
Understanding the different types of data cables is the first step in establishing an effective wiring system. Each cable type serves a specific purpose, depending on the bandwidth requirements, distance, and environment in which it is installed.

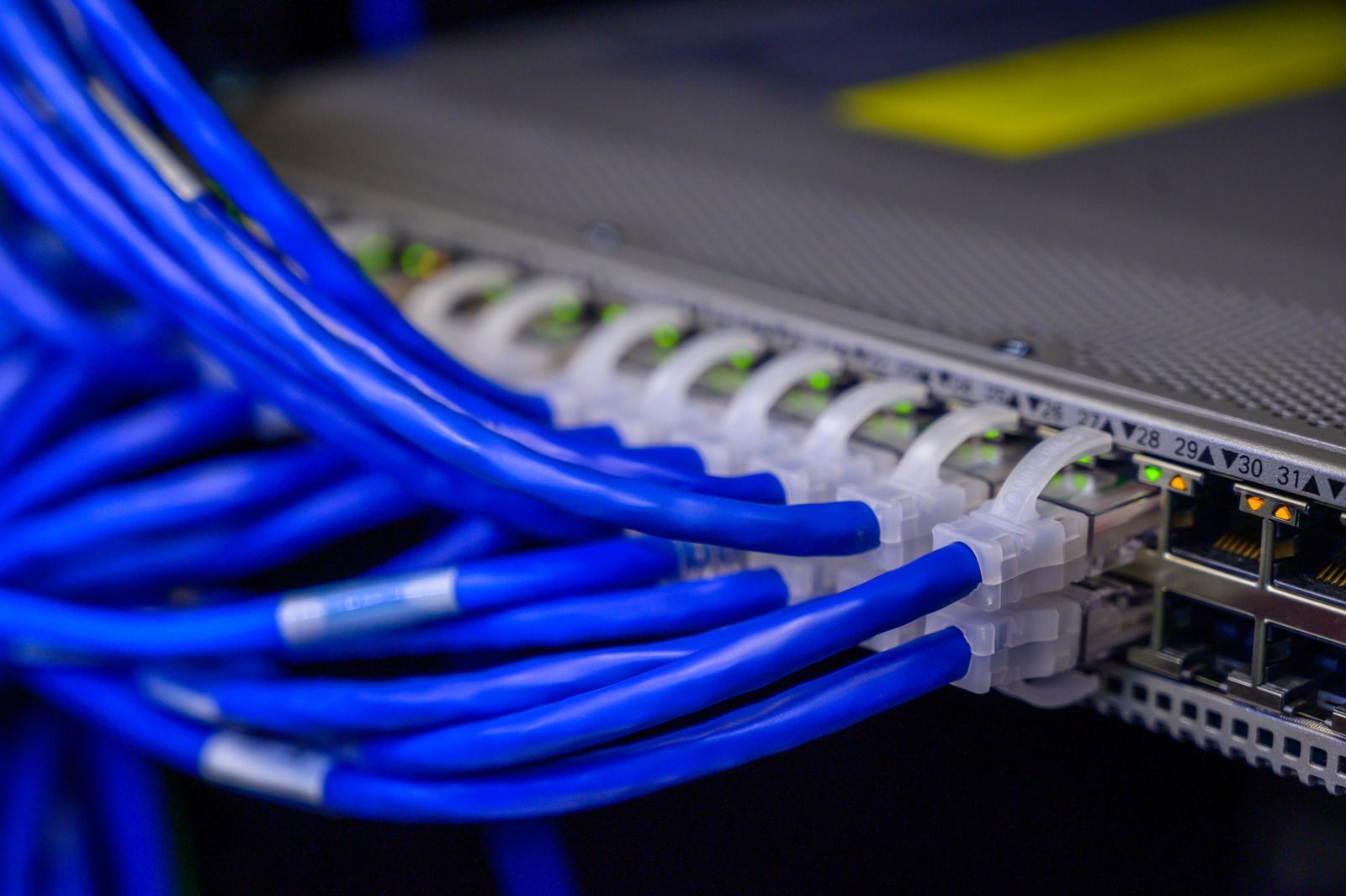

Twisted Pair Cables (Cat5e, Cat6, Cat6a, Cat7)
Twisted pair cables are the most common solution for both home and office networks. Category 5e (Cat5e) cables support up to 1 Gbps speeds, suitable for most residential networks. Category 6 (Cat6) and Cat6a cables can handle up to 10 Gbps over shorter distances, making them ideal for offices with high data traffic. Cat7 cables offer additional shielding and are designed for more complex networking environments where minimal interference is required.
Twisted pair cables are cost-effective, easy to install, and compatible with most networking devices. Real-world example: A home office with multiple devices like computers, printers, and smart devices benefits from Cat6 cabling, ensuring consistent high-speed connectivity.
Coaxial Cables
Coaxial cables are primarily used for internet connections via cable modems and television signals. Their design allows for minimal signal interference over longer distances compared to twisted pair cables. Coaxial wiring is often chosen for areas where high bandwidth is necessary, but environmental conditions may cause signal degradation, such as near industrial equipment.
Fiber Optic Cables
Fiber optic cables transmit data using light signals, offering extremely high-speed connections and long-distance capabilities. Although more expensive, fiber is ideal for businesses requiring large-scale data transfers, server connections, and backbone network infrastructure. For instance, an office spanning multiple floors may use fiber optic cables to connect server rooms with workstations, ensuring reliable and fast communication.
2. Planning and Designing the Wiring Layout
A well-planned wiring layout ensures efficiency, scalability, and easier maintenance. Whether for a home or office, designing the network layout requires strategic consideration of cable routes, device placement, and future expansion.
Network Topology Choices
Network topology determines how devices are interconnected. The most common topologies include:
- Star Topology: Each device connects to a central hub or switch. This is ideal for offices where centralized management and fault isolation are essential.
- Bus Topology: Devices are connected in a linear sequence, suitable for small networks but prone to performance issues with high traffic.
- Ring Topology: Devices form a closed loop, mainly used in specific office environments for redundancy.
Choosing the right topology affects network reliability and troubleshooting efficiency. A practical example: Home networks typically use a star topology with a central router, while mid-sized offices may use a combination of star and fiber backbone connections.
Cable Routing and Management
Proper cable management reduces interference, prevents damage, and improves aesthetics. Routing cables through walls, conduits, or cable trays keeps them organized and protects against accidental disconnections or physical damage. Labeling cables at both ends facilitates troubleshooting and future upgrades.
Example: In an office renovation, structured cable trays along ceilings or under raised floors allow for neat, accessible wiring while keeping electrical and network cables separate to avoid electromagnetic interference.
3. Installation Best Practices
Installing data wiring requires technical expertise, adherence to safety standards, and attention to detail. Following best practices ensures long-term network performance and reduces maintenance costs.
Proper Termination and Connections
Each cable must terminate correctly using the appropriate connectors, such as RJ45 for twisted pair cables. Improper termination can lead to signal loss, cross-talk, or intermittent connectivity. Using punch-down tools and testers ensures every connection is reliable.
Avoiding Interference
Electrical interference from lighting, motors, and other equipment can degrade signal quality. Maintain a minimum distance between power and data cables, and consider using shielded cables in areas prone to interference.
Testing and Verification
After installation, every cable should be tested for continuity, signal strength, and speed. Tools like cable testers and network analyzers detect faults before devices are connected, preventing time-consuming troubleshooting later. Example: In an office setup, a failed cable test saved hours of downtime by identifying a defective Cat6 cable before network activation.
Safety Considerations
Adhering to local building codes, fire regulations, and grounding practices protects both the network and its users. Installing cables with fire-resistant jackets in commercial spaces or using conduit systems in residential wiring reduces risk and ensures compliance with safety standards.
4. Challenges in Data Wiring
While the fundamentals of data wiring may appear straightforward, several challenges can impact the effectiveness of a network. Recognizing and addressing these issues is critical.
Signal Degradation and Distance Limitations
Twisted pair cables have distance limitations, usually 100 meters for Cat5e or Cat6, beyond which signal quality diminishes. Fiber optic cables can extend much further but require careful handling and splicing techniques.
Environmental Factors
Moisture, temperature fluctuations, and physical obstructions can affect wiring integrity. For example, running cables in a basement prone to humidity requires moisture-resistant materials, while outdoor office wiring may need UV-resistant jackets.
Scalability Issues
Many homes and offices underestimate future connectivity needs. A network designed for current devices may struggle when additional computers, printers, or smart devices are added. Structured cabling and modular network design help avoid costly rewiring in the future.
Maintenance and Troubleshooting
Without proper labeling and documentation, troubleshooting network issues becomes time-consuming. A detailed wiring map ensures technicians or homeowners can quickly identify problem areas, reducing downtime and operational disruption.
5. Emerging Trends in Data Wiring
Staying informed about industry trends ensures networks remain efficient, secure, and scalable. Modern advancements enhance performance and simplify installation.
Power over Ethernet (PoE)
PoE allows both power and data transmission through a single Ethernet cable. This technology supports devices like IP cameras, VoIP phones, and Wi-Fi access points without requiring separate electrical wiring, simplifying installation and reducing clutter.
Smart Home and Office Integration
Integration of smart devices such as thermostats, security cameras, and lighting systems demands reliable wiring capable of supporting multiple simultaneous connections. Structured cabling allows seamless integration of these systems, providing a unified network backbone.
High-Speed Networking Standards
Upgrading to Cat6a, Cat7, or even Cat8 cables ensures future-proofing for high-speed internet and advanced office applications. Fiber-to-the-desk installations in commercial spaces enable large data transfers and cloud-based workflows without bottlenecks.
Wireless Complementation
While Wi-Fi is common, wired networks offer stability, higher speeds, and security advantages. Combining wired and wireless infrastructure creates a hybrid system that maximizes flexibility and performance, especially in office environments.
6. Real-World Applications and Benefits
The practical impact of well-designed data wiring extends beyond connectivity; it influences productivity, safety, and long-term costs.
Home Networks
A properly wired home supports smart TVs, gaming consoles, home offices, and security systems without interruptions. High-speed wired connections reduce buffering, improve cloud backup efficiency, and provide reliable remote work capabilities.
Office Environments
In offices, structured cabling improves workflow efficiency, supports VoIP and video conferencing, and reduces network downtime. Centralized wiring closets, organized cable trays, and clear labeling allow IT staff to troubleshoot issues quickly, preventing operational disruptions.
Cost and Time Savings
Although professional installation may involve upfront costs, structured and efficient wiring reduces maintenance expenses and future upgrades. Avoiding ad hoc wiring prevents signal issues, reduces the risk of damage, and ensures long-term reliability.
Enhanced Security
Wired networks provide higher security than purely wireless systems, as unauthorized access requires physical connection. Combining wired and wireless networks with proper segmentation improves overall network security for sensitive data.
Dependable Wiring Services From Knowledgeable Electrical Experts
Understanding the basics of home and office data wiring is essential for creating reliable, efficient, and scalable networks. Choosing the right cable type, designing a structured layout, following best installation practices, and addressing common challenges ensures optimal network performance. Incorporating emerging technologies like PoE and high-speed cabling prepares networks for future demands, while careful planning and maintenance enhance both security and productivity.
